• IHP (INDIRECT HIGH PRESSURE VALVE)

IHP (INDIRECT HIGH PRESSURE VALVE)


IHP (INDIRECT HIGH PRESSURE VALVE)

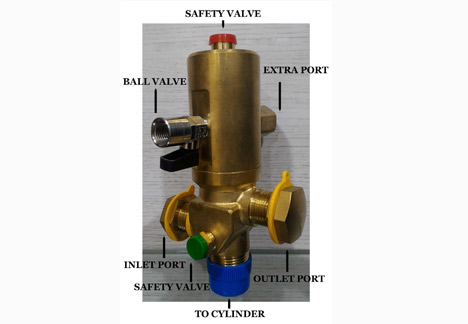

Fire suppression Indirect High Pressure Valve for CO2

Key advantages:

  • Used in conjunction with Fire Detection Tubing to detect and suppress fires in small, enclosed spaces
  • Integrated pressure reducing valve, rupture safety disc, spring-loaded safety valve, filling valve and ball valve.
  • Compact and flexible - permits installation inside individual equipment, closer to the source of a potential fire

Specifications


Product Indirect High Pressure Valve
Material Brass (Forged)
Primary Seal Silicone Compound
Other O-Rings PTFE
Springs Nickel Steel
Outlet W21.7 X 1/14”
Inlet /Filling Connection W21.7 X 1/14”
Bottom Thread W28.8X1/14 ” NPT
Gauge Connection M10 X 1
Operating Temp Range -20 to 60 Deg C
Extinguishing Agent CO2 gas, Inert Gases
Working Pressure For CO2 at 200 C   60 Bar
Safety Valve 35 Bar ± 5Bar
Weight 1.90 Kgs
